PPT-1 Portable Pulse Tester
The PPT-1 Portable Pulse Tester is a low-cost field tool for testing a meter’s KYZ pulse outputs. The PPT-1 supplies its own wetting (sense) voltage to the relay’s output terminals and visually displays the closures or “pulses” of that output. In addition, it features a two-tone audio output that allows the technician to “hear” the changes of the KYZ output. It is configured in Form C (3-Wire) format, but can be used in either Form C or Form A (2-Wire) mode.
The PPT-1 can be used with either mercury-wetted or solid-state relay outputs. It is battery powered with two AA replaceable batteries.

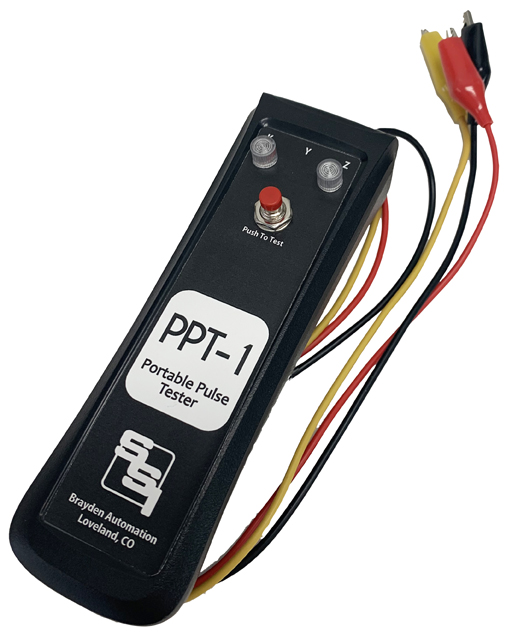

Designed for the rigors of the field, the PPT-1 is packaged in a hand-held ABS enclosure. Three leads
with alligator clips are provided in standard Red-Yellow-Black colors for K, Y and Z respectively. Upon
each closure of the KYZ switch, the tester will display continuity between K and Y or K and Z terminals.
Super-bright Red and Green LEDs are sunlight readable to insure that pulse output operation can be
easily observed in the field. A momentary Pulse-to-Test pushbutton switch allows for battery use only
when intended.
| Electrical | |
|---|---|
| Power Input: | None – Battery Powered; 2 replaceable AA Batteries |
| Sense Voltage: | 3 VDC |
| Sense Current: | <10 mA |
| Mechanical | |
|---|---|
| Mounting: | Any position |
| Size: | 6.00” high x 1.85” wide x 1.35” deep |
| Weight: | 1lb |
| Lead Lengths: | 18" |
| Lead Wire Gauge: | 22 AWG |
| Temperature | |
|---|---|
| Temperature Range: | -38º C to +70º C, -38.4º F to +158º F |
| Humidity: | 0 to 98% non-condensing |
| Storage Temperature Range: | -30° C to 80° C |
All specifications are subject to change without notice.
