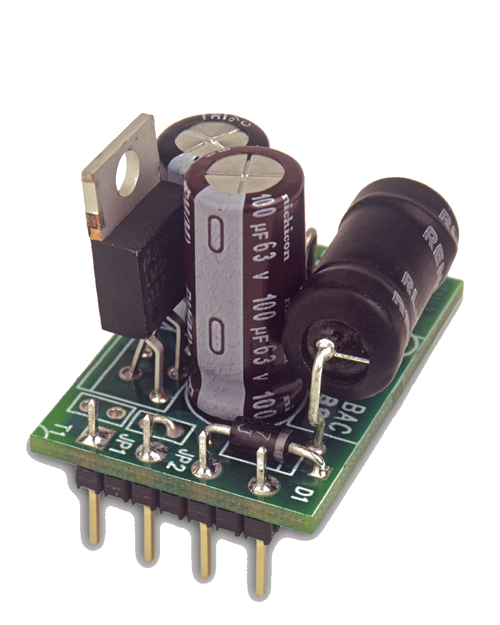

DCS-2 Auxiliary Power Supply
The DCS-2 Auxiliary Power Supply allows any SSI relay to be powered from a low voltage DC supply ranging from 15 to 48 VDC.
The DCS-2 power uses a switching power supply technology to efficiently power most standard SSI relays eliminating the need for a step-down power transformer or other applicable power supply. The DCS-2’s small size allows it to replace the power transformer on the host SSI relay and does not require any additional wiring or mounting space. A +12VDC output of the DCS-2 supplies the relay’s power supply requirements as well as providing a wetting voltage to the meter.
The DCS-2 must be ordered as a factory-installed option by adding an “-SP13” suffix on the end of the product’s part number. LS-Series relays are not available with the DCS-2 option.
| Electrical | |
|---|---|
| Power Input: | 15 - 48 VDC |
| Output Voltage: | 12VDC |
| Output Current: | 500mA Max |
| Mechanical | |
|---|---|
| Mounting: | Any position |
| Size: | 1.5” wide, 1.0” high, 1.1” deep |
| Weight: | 2 ounces |
| Temperature | |
|---|---|
| Temperature Range: | -38º C to +70º C, -38.4º F to +158º F |
| Humidity: | 0 to 98% non-condensing |
All specifications are subject to change without notice.
