CIR-24NG Customer Interface Relay
The CIR-24NG is our next generation of Customer Interface Relay that provides the ultimate flexibility in configuring inputs and outputs for just about any pulse relaying scheme. The CIR-24NG’s four isolated solid-state Form A or C dry contact outputs are independently programmed to follow one of the two Form A or C inputs. Each set of output contacts may be used as either a Form A (KY pulse) or a Form C (KYZ pulse) contact. The typical application is the utility’s interface between the KWH meter and a customer-owned energy control system where two types of pulses are used. For example, one input channel might be for watt-hour pulses and the second input channel for var-hour pulses. The CIR-24NG provides two independent isolation relay channels in one ready-to-use weather-resistant package.
The CIR-24NG has two operating modes, Normal and Conversion. In the Normal Mode, Form A inputs are passed to Form A outputs, and Form C inputs are passed to Form C outputs. In Conversion Mode, Form A inputs are passed to Form C outputs, or Form C inputs are passed to Form A outputs. Thus, each of the four outputs can be “mapped” to either of the two inputs. Inputs are configurable to A or C, and outputs are configurable to A or C. Here are some examples of configurations:
Default
2 Form C inputs, each with 2 Form C outputs (CIR-24 mode)
1 Form C input and three Form C outputs (CIR-13 Mode), and
1 Form A input and one Form A output (PIR-1 Mode)
1 Form C input and 2 Form A outputs, and
1 Form A input and 2 Form C outputs

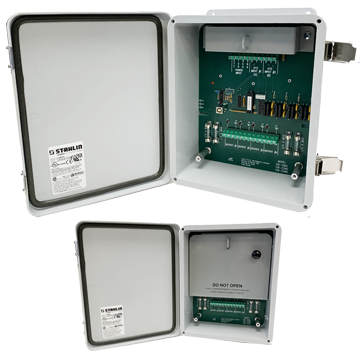

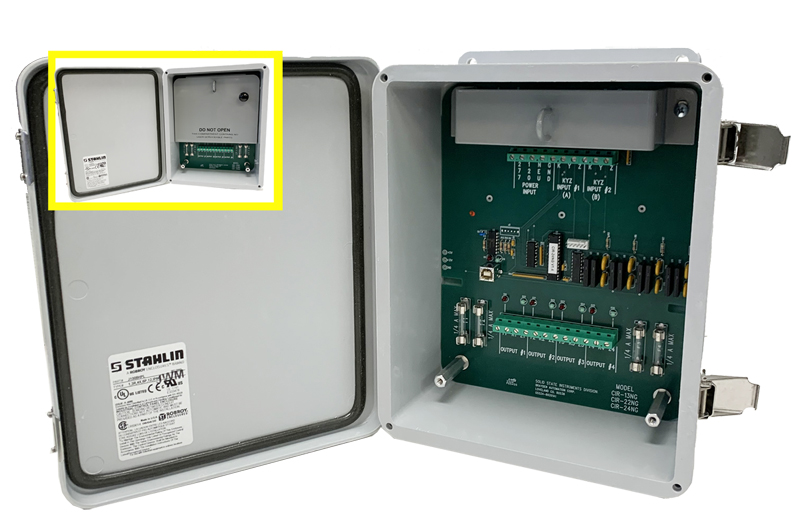

The CIR-24NG is internally divided into two compartments. Once installed, the upper compartment is normally locked and only accessible to utility metering personnel. It contains the Power Supply input terminals, all of the system electronics and programming accessibility. The lower compartment (customer compartment) contains an Output terminal strip, fusing, and output status LEDs. Using SSI’s Universal Programmer software, the inputs and outputs can be configured as 2-Wire(Form A) or 3-Wire(Form C) and each output mapped to an input. Pulse output timing for Form A pulse widths can also be set. With the outputs having like form Settings to the inputs, the channel is in Normal mode and the outputs follow the inputs with equal time. If the outputs are Form A, a fixed pulse width may be programmed into the that particular relay output, making it compatible with certain instruments’ minimum pulse width requirements. If the outputs have the opposite setting to the input they are following, the that channel is in the conversion mode, either A to C or C to A while keeping the pulse value constant.
Red and green LEDs, one for each input and output, are located next to the terminal blocks for good visibility and easy interpretation of the state of each input and output.
The CIR-24NG’ robust solid-state switching device is rated at 800V and 150mA giving maximum protection from lightning or transient voltage damage. The CIR-24NG has built-in transient protection for the solid-state switching devices that eliminates the need for external or off-the-board transient suppressors.
Specifications
| Electrical | |
|---|---|
| Power Input: | 120 VAC, 208-277 VAC. Burden: 10 mA at 120 VAC |
| Pulse Input: | Two Form A (2-Wire) or C (3-Wire) input with +13VDC wetting voltage on the “Y” and “Z” terminals |
| Pulse Output: | Four sets of dry contact solid state outputs – two located in the customer’s compartment and two in the utility compartment. The contacts are solid state “no bounce” relays rated at 250VACVDC at 1/2 Amp. The maximum rating of the contacts is 1500mW. Factory fused at 1/4 amp. (3AG) |
| Contact On-State Resistance: | 12.3 ohms maximum, 18 ohms typical |
| Insulation Resistance: | 50 megohms typical |
| Operate and Release Time: | Turn On Time - 10 mS MAX Turn Off Time - 5 mS MAX |
| Input/Output Isolation Voltage: | 2500Vrms |
| Mechanical | |
|---|---|
| Mounting: | Any position |
| Size: | 9.0’’ wide, 11.0’’ high, 4.50’’ deep |
| Weight: | 9 pounds |
| Type/Material: | NEMA 4X Fiberglass Case |
| Temperature | |
|---|---|
| Temperature Range: | -38º C to +70º C, -38.4º F to +158º F |
| Humidity: | 0 to 98% non-condensing |
| Available Options | |
|---|---|
| Input Voltages: | 24 VAC/24VDC, 125VDC. Contact Factory |
All specifications are subject to change without notice.
