RPR-23PS Triple Pulse Isolation Relay

RPR-23PS Triple Pulse Isolation Relay

Electric utilites use the RPR-23PS triple kyz pulse isolation relay to increase pulses and accuracy. It provides three isolated solid state Form C (KYZ) contacts from two Form A or C inputs. Each input of the RPR-23PS supplies its own sense voltage to the pulse sending unit(s), usually an electric meter’s pulse initiator.

Typical applications include interfaces between utility metering devices and customer-owned energy control systems, demand recorder applications, or supervisory control systems (SCADA) interfaces.

The RPR-23PS relay is designed to filter noise and transients from its input to prevent any false pulses at its output. Bright red and green LED indicators display the system’s status at all times thus allowing a rapid visual check of the system’s performance without requiring any additional test equipment.

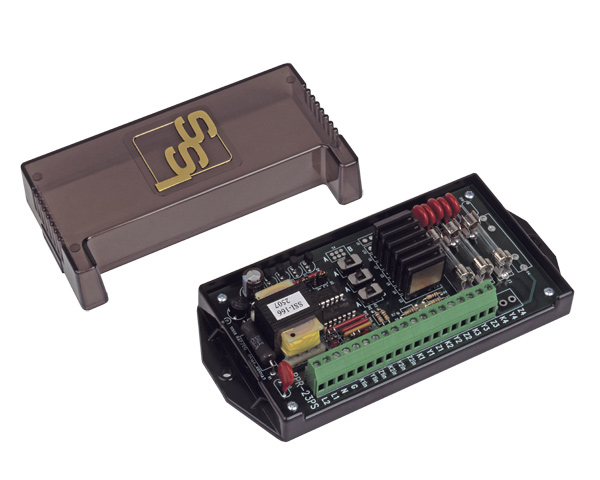

The RPR-23PS’ input and output circuit’s terminal strip connector is a “Euro” type, providing excellent insulation from live electrical contacts. Each “K” lead of the RPR-23PS’ outputs is fused to prevent damage to the relay under almost any condition a user might cause such as excessive current, incorrect wiring, etc. The RPR-23PS’ robust solid state switching device is rated at 800V at 750mA giving maximum protection from lightning or transient voltage damage. Its built-in transient protection for the solid-state switch contacts eliminates the need for external or off-board transient suppression devices. All component parts that have power applied to them, with the exception of the input/output terminal strip are enclosed in a polycarbonate cover for maximum protection. The mounting base plate is also made of polycarbonate and offers excellent electrical insulation between the circuit and the mounting surface.

Power Input: 120 VAC, 208-277 VAC. Burden: 10 mA at 120 VAC
Pulse Output: Three sets of Form C dry contacts (K, Y & Z) for energy pulses. The solid-state “no bounce” relay contacts are rated at 250 VAC/VDC @ 1/2 Amp. The maximum rating of the contacts is 100 VA. Factory fused at 1/2 amp. (3AG)
Contact On-State Resistance: 2.3 ohms maximum, 1.7 ohms typical
Insulation Resistance: 50 megohms typical
Operate and Release Time: Turn On Time - 8 mS typical; 20 mS MAX
Turn Off Time - 1 mS typical; 5 mS MAX
Input/Output Isolation Voltage: 2500Vrms

Mounting: Any position
Size: 3.50” wide, 7.20” high, 1.50” deep

12 ounces

Temperature Range:

-38º C to +70º C, -38.4º F to +158º F

Humidity: 0 to 98% non-condensing

Available Options
Input Voltages:24 VAC/ 24 VDC, 125 VDC

All specifications are subject to change without notice.
