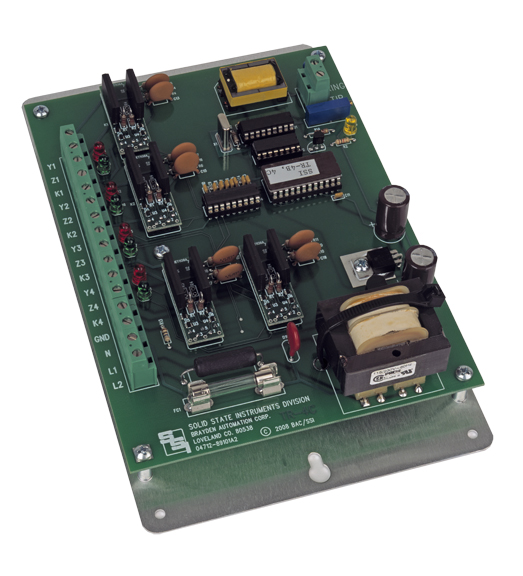

TR-4C Tone Receiver
The TR-4C tone receiver is designed to receive tone transmissions from an SSI Model TT-4C tone transmitter. In normal operations, the TR-4C receives four sets of meter energy pulses in a three-wire Form C (KYZ) or 2-Wire Form A (KY) format. While the most common usage of the TR-4C is for energy pulses, it can receive any four Form A or Form C sets of contacts sent by the TT-4C tone transmitter.
The input to the TR-4C tone receiver is via either a twisted wire pair or a leased dedicated telephone line. The operation of the phone line may be either directly dedicated or through a one or more central office exchanges. The TR-4C will directly drive up to 1/2 mile of twisted wire pair without additional amplification. The TR-4C accepts tone input levels of -40 dbm to +3 dbm with the normal input being a -11 dbm level.
The frequencies received by the TR-4C are quartz crystal-controlled and never need adjustment. The TR-4C receiver has 4 “dry” (no voltage present) non-bounce Form C solid-state relay outputs. Several TR-4C receivers may be used with only one TT-4C transmitter if it is desirable to deliver a meter’s pulse information to multiple locations not close to each other. The TR-4C’s tone signal input is through a 600 ohm isolation transformer which meets the FCC Section 68 telephone equipment requirements.
Bright high-output red, and green LEDs indicate the output status of each of the four “energy” pulse 3-wire relays. A yellow LED shows the status of the transmitted signal into the TR-4C at all times making system checking easy without additional test equipment. When two or more events occur at the transmitter at the same time, the TR-4C will replicate the timing without a transmission sequence timing distortion. The input and output terminal strip is a EURO type offering excellent electrical insulation. MOV Transient suppression for the solid-state relay output contacts is provided internally.
| Electrical | |
|---|---|
| Power Input: | 120, 208-277 VAC. Burden: 4 VA at 120 VAC |
| Signal: | DTMF tone signal from a TT-4C using a telephone leased line or a twisted wire pair should be between -40 dbm to +3 dbm. The input signal level may be adjusted by means of a variable resistor on the TR-4C. |
| Output: | Four sets of dry Form C (K, Y, & Z) for energy pulses. The contacts are solid state relays rated at 250 VAC/VDC @ 350mA MAX, 2 amps break, 5 amps carry. The maximum power rating of the contacts is 50 VA. Factory fused at 1/4 amp (3AG). |
| Contact On-State Resistance: | 5.0 ohms maximum, 3.4 ohms typical |
| Insulation Resistance: | 50 megohms typical |
| Operate and Release Time: | Turn On: 5 milliseconds maximum Turn Off: 3 milliseconds maximum |
| Input/Output Isolation Voltage: | 2500 Vrms |
| Mechanical | |
|---|---|
| Mounting: | Any position (mounted on aluminum base plate with mounting tabs) |
| Size: | 5.50” wide, 7.50” long, 2.00” high |
| Weight: | 1.2 pounds |
| Temperature | |
|---|---|
| Temperature Range: | -38º C to +70º C, -38.4º F to +158º F |
| Humidity: | 0 to 98% non-condensing |
| Available Options | |
|---|---|
| Input Voltages: | Contact Factory. |
All specifications are subject to change without notice.
