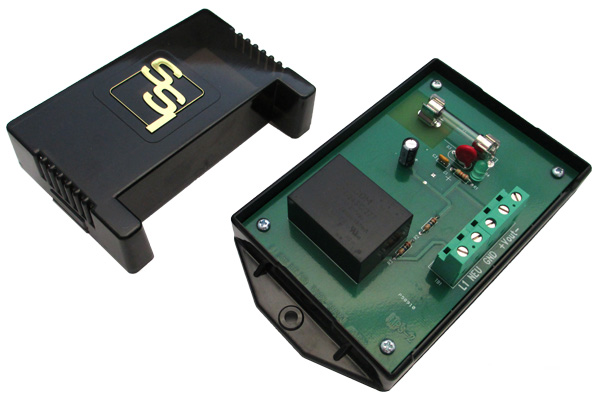

MPS-2 Metering Power Supply
The MPS-2 Meter Power Supply, a low-cost DC power supply option, provides an isolated low-voltage DC wetting voltage designed specifically for KYZ pulse metering applications.
Packaged in the convenient SSI “small footprint” case, the MPS-2 can be used in any application where a wetting voltage is needed to go through a KYZ pulse initiator and into another pulse input device such as a SCADA system, RTU, energy management system, KYZ pulse totalizer, electric meter pulse input or other telemetry or control systems which accept pulses.
The MPS-2 is available in standard outputs of:
- MPS-2-12 (12VDC)
- MPS-2-15 (15VDC)
- MPS-2-24 (24VDC)
The power supply’s low-current design provides up to 300mA for the pulse metering circuit. The output is internally current-limited and provides a fuse to prevent damage in the event of a short circuit condition. In addition, the MPS-2 power supply includes MOV transient suppression devices on both the AC power supply input and the DC output.
| Electrical | |
|---|---|
| Power Input: | 120-277 VAC |
| Output Voltage: |
+12VDC, +18VDC, +24VDC, specified at the time of order |
| Output Current: |
300mA @ 12VDC, 250mA @ 15VDC, Nominal 150mA @ 24VDC |
| Fuse: |
0.1A (100mA) |
| Voltage Regulation: |
0.5% |
| Mechanical | |
|---|---|
| Mounting: | Any position |
| Size: | 3.27” wide, 5.7” high, 1.50” deep |
| Weight: | 1lb |
| Temperature | |
|---|---|
| Temperature Range: | -38º C to +70º C, -38.4º F to +158º F |
| Humidity: | 0 to 98% non-condensing |
| Available Options | |
|---|---|
| Input Voltages: |
Contact Factory. |
All specifications are subject to change without notice.
